HUASIFEI 1200Mbps dual band vehicle router wifi 5g support the on-board 12V and 36V power supply 5g lte router

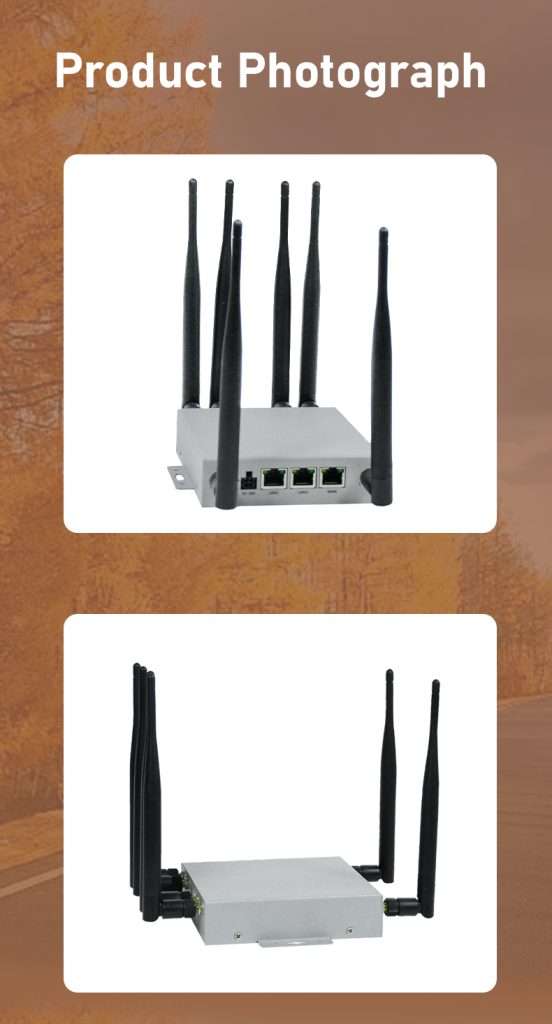

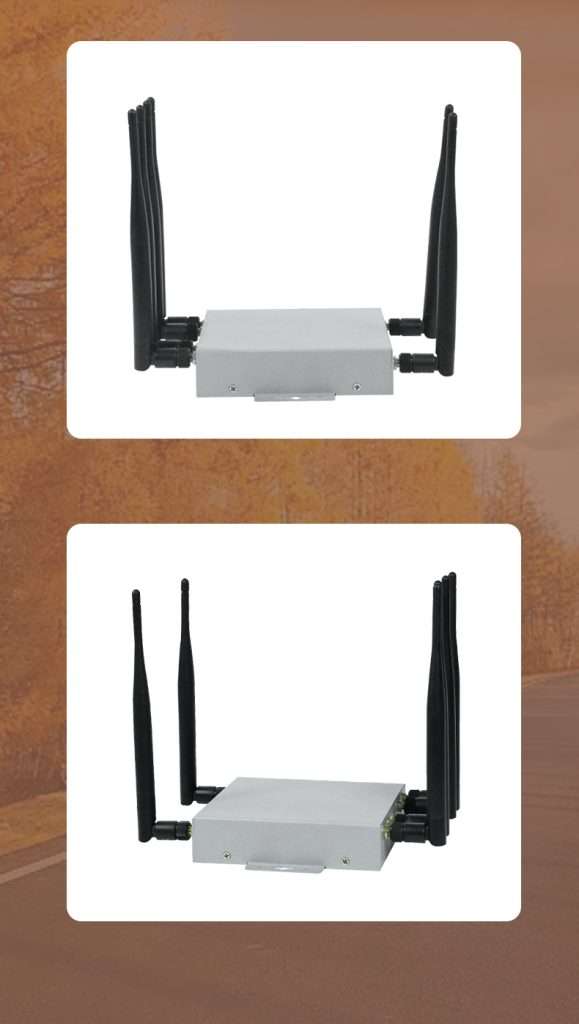

WS1209-5G is a 5G/4G+WiFi dual band 1200M industrial grade vehicle router, which supports three gigabit Ethernet communications, WIFI LAN (802.11 b/g/n/a/ac) communications and WAN 4G/5G wireless communication functions. The device is loaded with WAN communications, WIFI LAN transmission security certification, 5G/4G/3G system watchdog and other functions, realizing seamless connection between WLAN and wireless WAN, automatic redial when disconnected, and providing users with high-speed Safe and reliable mobile broadband service; The equipment adopts metal shell, special vehicle anti-interference design, good anti-interference performance, and safe anti-theft frame. The on-board special power supply design is adopted to support the on-board 12V and 36V power supply systems, which can effectively prevent the damage of the on-board power supply fluctuation to the equipment. It is applied to the WIFI wireless Internet access of various mobile vehicles, such as bus WIFI, long-distance bus WIFI, bullet train WIFI and taxi WIFI. At the same time, the equipment is also widely used in the WIFI coverage of scenic spots and other public places.

Product characteristics

● Comply with 802.11b/g/n/a/ac.
● Wireless transmission power: 802.11b 18dBm ± 2dBm, 802.11g 15dBm ± 2dBm, 802.11n 15dBm ± 2dBm 802.11a 20dBm±2dBm 802.11ac 20dBm±2dBm.
● Three 10/1000 Mbps adaptive Ethernet interfaces are provided to support automatic rollover (Auto MDI/MDIX).
● One USB2.0 data interface.
● One MICRO SD (TF) card interface (FAT32 format 16G read-write, over 16G only support read; NTFS format 16G read-write, over 16G only support read; EXT4 format 128G read-write).

● One PCI-E 4G module interface and one M2 5G module interface.
● Support 5G/4G/3G watchdog software function, and automatically redial when the network is disconnected.
● Through external USB interface.
● Support GPS function (depending on 5G4G module)
● Support one button RESET function

● Support 12V and 36V system of automobile power supply, with minimum working voltage of 9V and maximum working voltage of 36V. It can withstand a surge voltage of 174V with a duration of 150ms at most, meeting 5a and 5b standards for on-board protection.
● Support multiple encryption methods to ensure the safe transmission of data
● Rich software management settings.
● Support openwrt firmware, customize firmware development, and provide SDK technical support.

WS1209-5G Hardware Specifications
Hardware Specifications	MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB
4G 5G Modem	4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
Antenna	4 x 5dbi high gain omni-directional 4G5G antennas
Interface	110/100M/1000M WAN port with automatic MDI/MDIX 210/100M/1000M LAN ports, auto MDI/MDIX or 2PCS LAN can be selected. 1USB 2.0 port 1PCI-E 1M.2 1SIM card 1SD card 14PIN Power interface
LED	Power/SYS/USB/2.4G/5.8G/4G5G/USB
Button	1 Reset button
Power adapter	9V-36V Vehicle wide voltage
Maximum power consumption	< 24W
Accessories and Packaging	Power cord Super Category 5 network cable 1PCS Antenna6PCS

Packaging & Shipping

FAQ

OEM/ODM service is accepted? Can I get my products customized?

OEM/ODM service is available.

What kind of service do you offer

1.Custom solutions for WIFI system 2.Replacement and enhancement of connectors, antennas, modules, and GPS systems 3.Custom logo design 4.Label creation and application 5.And more

When I can get the price?

Our sales team usually quote within 8 hours after we get your inquiry with full detail. Any urgent cases, please contact us directly by phone or send eamil to our official email.

Will I be able to see a prototype before placing my order?

Yes, Before any order proceeds into production,we require that you see and approve of it.

How long is the production lead time?

Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

How to update the firmware of our router to the latest version?

If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
