OpenWrt modem router configuration made easy for new users

You can set up your openwrt modem router with confidence, even if you have never configured a router before. This guide uses clear steps so you never feel lost. HUASIFEI routers work well with openwrt, making them a smart pick for new users. With openwrt, you get powerful control over your network and can unlock advanced features. You do not need a technical background to follow this guide. Your router and network security start here.

What is OpenWrt?

OpenWrt Overview

You may wonder what makes OpenWrt different from the software that comes with most routers. OpenWrt is a custom router firmware that replaces the default software on your device. It is open source, which means anyone can view, improve, and share its code. OpenWrt runs on a Linux foundation and gives you full control over your router’s features and settings. You can install it on many types of routers, including older models that manufacturers no longer support.

OpenWrt stands out because it lets you customize your network in ways that stock firmware cannot. You get access to thousands of extra software packages, advanced networking tools, and security features. The global OpenWrt community works together to provide regular updates and quick fixes for any issues.

Here is a quick comparison between OpenWrt and the stock firmware that comes with most routers:

Key Benefits

When you use OpenWrt, you unlock many advantages for your home network:

• You get enhanced security features, such as advanced firewalls, VPN support, and intrusion detection. These tools help protect your data and block unwanted traffic.
• You can customize your router by installing extra software packages. This lets you manage bandwidth, monitor network activity, and set up complex networking tasks.
• The OpenWrt community offers strong support. You can find guides, forums, and troubleshooting help from users around the world.
• OpenWrt helps you get the most out of your hardware. You can use features that the manufacturer may not provide.
• You receive frequent updates and security patches. The active developer community responds quickly to new threats and keeps your network safe.

OpenWrt suits both beginners and advanced users. You can start with basic settings and explore more features as you gain confidence. With OpenWrt, you take control of your network and enjoy peace of mind knowing your router is secure and up to date.

OpenWrt Modem Router Guide

Check Compatibility

Before you start setting up your openwrt modem router, you need to make sure your device supports openwrt. This step is important because using unsupported hardware can cause problems and may even damage your router. You can follow these steps to check compatibility:

1. Find your router’s make, model, and hardware version. You can look at the label on the bottom or back of your router. You can also check the status or system information page in your router’s web interface.
2. Go to the official OpenWrt website. Look for the “Table of Hardware” section. Here, you can search for your router model and hardware version.
3. Make sure your router meets the minimum hardware requirements. For smooth openwrt performance, your router should have at least 16MB of flash memory and 128MB of RAM.
4. Download the correct openwrt firmware for your router model. The “Table of Hardware: Firmware downloads” page has the files you need. Choose the stable release if you are installing openwrt for the first time.
5. Double-check the firmware file name and version before you download it. This helps you avoid installation mistakes.

Checking compatibility protects your router from serious issues. Always confirm your router model supports openwrt before you install anything.

HUASIFEI Device Support

HUASIFEI offers a strong lineup of routers that work well with openwrt modem router setups. The company focuses on advanced networking equipment, including 5G CPE, 4G routers, WiFi 6 wireless devices, and more. HUASIFEI’s dedication to research and development means you get reliable and up-to-date products.

The HUASIFEI WS1208V2 5G LTE wireless router comes with openwrt pre-installed. This model has official support, making it a safe choice if you want a router that works out of the box with openwrt. You do not need to worry about compatibility or complicated setup steps.

Many beginners choose the HUASIFEI WE826-T2 for their openwrt modem router. This router is popular because it is easy to set up and does not require technical skills. You can customize your network, use advanced features like VPN and firewall, and enjoy strong wireless signal. The WE826-T2 is also durable, which makes it a good option for travel or remote use.

Here are some reasons why HUASIFEI routers are a smart pick for openwrt beginners:

• Simple setup process that guides you step by step.
• Full openwrt compatibility for easy customization.
• Reliable wireless performance for home and travel.
• Strong build quality for long-lasting use.

HUASIFEI routers help you get started with openwrt modem router configuration quickly and easily. You can trust their products to deliver stable internet and advanced wireless features.

If you want a dependable openwrt modem router, HUASIFEI gives you the support and features you need. Their routers make it easy to install openwrt, secure your network, and enjoy fast wifi at home or on the go.

OpenWrt Router Setup Steps

Backup Settings

Before you install new firmware on your router, you should always back up your current settings. This step protects your network and saves you time if you need to restore your previous setup. Many users skip this step, but it can prevent frustration later.

Here are some risks if you do not back up your router settings:

• You may lose all your custom configurations, such as port forwarding rules and parental controls.
• If you want to go back to your old firmware after installing OpenWrt, you will lose all OpenWrt settings unless you have a backup.
• Without a backup of the original firmware, you may not be able to return your router to its factory state if something goes wrong.
• Not having backups can make recovery harder and lead to loss of personalized settings.

Most routers have a backup option in their web interface. Look for a “Backup” or “Save Settings” button. Save the backup file to your computer. If possible, also download the original firmware from your router manufacturer’s website. This gives you a safety net if you need to restore your device.

Tip: Always keep your backup files in a safe place. Label them with the date and router model for easy reference.

Download Firmware

You need the correct firmware before you can install OpenWrt on your router. Using the wrong firmware can cause problems or even damage your device. The OpenWrt Firmware Selector website helps you find the right firmware for your router model. Type your router’s name or model number into the search box. You will see a list of available firmware builds for your device. Choose the stable release if you are new to OpenWrt. Stable releases offer the best balance of features and reliability.

For some routers, like those from GL.iNet, you can find official OpenWrt-based firmware on their support pages. Here is an example of how firmware downloads look for different router models:

If you use a HUASIFEI router, you will find that the process is even easier. HUASIFEI designs its routers for simple OpenWrt installation and provides clear support for firmware updates. Always double-check the firmware file name and version before you download. This step helps you avoid mistakes during installation.

Flash OpenWrt

Now you are ready to install OpenWrt on your router. Flashing means you will replace the current firmware with the new OpenWrt firmware. This process may sound technical, but you can do it by following clear steps.

1. Connect your computer to the router using an Ethernet cable. This gives you a stable connection during the install.
2. Log in to your router’s web interface. Look for a section called “Firmware Upgrade” or “System Tools.”
3. Click the option to upload new firmware. Select the OpenWrt firmware file you downloaded earlier.
4. Start the install process. Do not turn off the router or unplug it while the firmware is installing.
5. Wait for the router to finish the firmware update. The router will reboot automatically when the process is complete.

HUASIFEI routers make this process smooth. Their web interface guides you through each step, reducing the risk of errors. If you follow the instructions, you will have OpenWrt running on your device in just a few minutes.

Note: If the router does not respond after flashing, check the manufacturer’s support page for recovery options. Keeping a backup of your original firmware helps you restore your device if needed.

First Login

After you install OpenWrt, you need to log in for the first time and set up your router. This step lets you secure your device and start using new features.

Follow these steps for your first OpenWrt login:

1. Connect your computer to the router with an Ethernet cable plugged into one of the LAN ports.
2. Open a web browser and enter the router’s default IP address: 192.168.1.1.
3. When prompted, use the username “root” and leave the password field blank.
4. You can also use an SSH client, like PuTTY or your computer’s terminal, to connect to 192.168.1.1 with the username “root” and no password.
5. After you log in, set a new password to protect your router.
6. If you do not see a web interface, you can install it by running the commands opkg update and opkg install luci in the terminal.
7. Once you set up the web interface, you can access it again at 192.168.1.1 using your new password.

You have now completed the openwrt router setup. HUASIFEI routers often come with OpenWrt pre-installed or offer easy guides for first-time users. This makes the process even more beginner-friendly.

Setting a strong password during your first login keeps your network safe from unwanted access.

First-Time Configuration

Set Admin Password

When you first log in to your openwrt router, you need to set a strong admin password. This step protects your network from unauthorized access. Use a password that is long, unique, and hard to guess. Avoid simple words or patterns. For even better security, use SSH keys instead of passwords for remote access.

Tip: Restrict SSH access to your local network only. You can do this in the LuCI web interface or with the uci command. Restart the SSH service after making changes. This reduces the risk of attacks from the internet.

You should also disable Telnet and use SSH for secure connections. Change default usernames and passwords, and enable two-factor authentication if your router supports it. These steps help keep your network safe.

Internet Setup

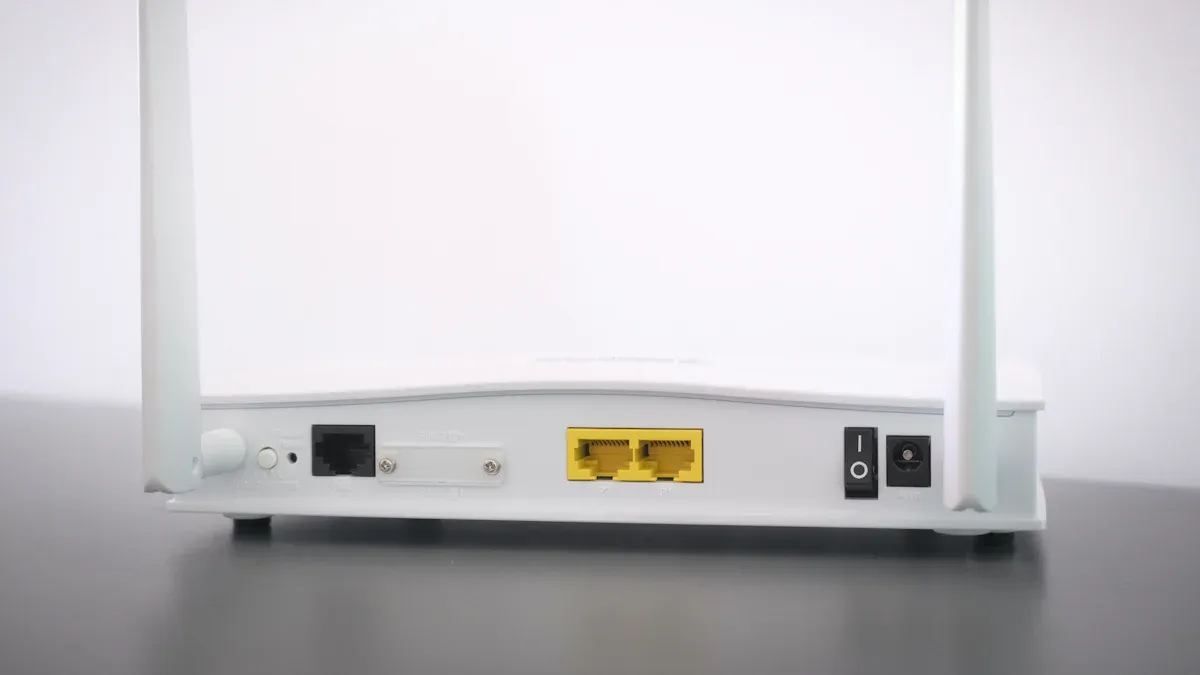

To connect your openwrt router to the internet, use the WAN port. Most users only need to plug the network cable from their modem into the WAN port. If your internet service provider uses special protocols like L2TP or PPTP, go to the Network > Interfaces section in LuCI. Select the correct protocol and enter your ISP details.

1. Plug the cable from your modem into the WAN port.
2. Open the LuCI web interface.
3. Go to Network > Interfaces.
4. Choose the right protocol if your ISP requires it.

Your router will now provide internet access to your network.

WiFi Setup

Setting up your wifi is important for both performance and security. Start by creating a new wireless network name (SSID) and a strong password. Place your router in a central spot to improve wireless coverage. Use a Wi-Fi analyzer app to find the best channel and reduce interference.

• Update your openwrt firmware regularly for security.
• Enable Smart Queue Management (SQM) for smoother streaming and gaming.
• Turn off unused services like Telnet or IPv6.
• Use secure DNS providers and enable DNS encryption.
• Set up a VPN for privacy if needed.

Monitor your wireless network for unknown devices and back up your settings often.

Change IP (Optional)

You can change your router’s default IP address to improve network security and avoid conflicts. This step is optional but helpful if you have many devices or want extra protection.

• Changing the IP can prevent conflicts and make your network easier to manage.
• It also makes it harder for outsiders to guess your router’s address.
• Write down the new IP address so you do not lose access.
• Avoid common ranges like 192.168.0.x or 192.168.1.x for better security.

If you run into issues, check for IP conflicts, reboot your devices, and verify your network settings.

Essential Features

Firewall

You can protect your home network with the powerful firewall tools built into openwrt. The firewall lets you set up custom zones, such as a guest zone, to keep your main network safe. You can create rules that block traffic from the guest zone and only allow internet access. This keeps your devices secure and limits exposure to threats.

• You can control DNS and DHCP traffic from guest networks.
• You can restrict SSH access to your local area network, stopping outside attempts.
• You can set up port forwarding for specific services, like SSH or remote desktop, using only the ports and protocols you need.

These features help you segment your network, filter traffic, and control who can access your devices. With openwrt, you get a strong foundation for network security.

SQM

Smart Queue Management (SQM) helps you keep your network running smoothly, even when many people use it at once. SQM uses advanced techniques like traffic shaping, fair queueing, and prioritization. These tools work together to reduce lag and make sure everyone gets a fair share of bandwidth.

When you enable SQM on openwrt, you see less delay and jitter, especially during busy times. Tests show that latency can drop from over 150 ms to just 2 ms with SQM turned on. This means your games, video calls, and streaming all feel faster and more reliable. SQM is a key tool for improving network performance in busy homes.

Encrypted DNS

You can boost your privacy by using encrypted DNS on your openwrt router. Options like DNSCrypt, DNS over TLS (DoT), and DNS over HTTPS (DoH) scramble your DNS queries. This stops others from spying on your internet activity or changing your requests.

• PowerDNS and DNSdist support these encrypted protocols on openwrt.
• Encryption keeps your DNS traffic safe from eavesdropping and tampering.
• You can filter and block harmful content, even when using encrypted DNS.

By turning on encrypted DNS, you protect your personal information and make your network safer for everyone.

More Options

Openwrt gives you many ways to upgrade your router’s features. You can install packages like Adblock to remove unwanted ads or OpenVPN for secure remote access. You can also enable intrusion detection systems to watch for threats in real time.

• Set up WPA3 for stronger wireless security.
• Adjust wireless channels to improve performance and reduce interference.
• Use Quality of Service (QoS) to prioritize important traffic, like gaming or streaming.
• Monitor your network with detailed statistics and system logs.
• Back up your settings often for quick recovery.

You can also use openwrt to create high speed wifi mesh networks. Mesh lets you cover your whole home with fast, reliable wifi. With openwrt, you can build a mesh network using multiple routers, giving you seamless coverage and better performance. Mesh technology is perfect for large homes or offices where a single router cannot reach every corner.

Tip: Explore the openwrt package list to find new tools and features that match your needs. You can customize your network for the best experience.

Troubleshooting Guide

Access Issues

You might face some common problems after installing openwrt on your router. This guide helps you solve them quickly:

1. Incorrect Firmware Flashing: If you use the wrong firmware, your router may not work. Always check the model before flashing. If you make a mistake, use recovery mode and upload the correct firmware.
2. Router Not Booting: Sometimes, the router does not start after installation. Try rebooting first. If that fails, enter recovery mode and use TFTP to upload the firmware again.
3. Error Messages During Installation: You may see errors about memory or corrupted files. Restart your router, download the firmware again from the official site, and check your computer’s IP settings.
4. Bricked Router Recovery: If your router seems dead, hold the reset button while powering it on until the LED flashes. Use a wired connection and a TFTP client to upload the firmware. If this does not work, perform a factory reset.
5. Network Connectivity Issues: If you cannot access the router, set your computer’s IP address to match the router’s subnet.
6. Security and Access Control: Use strong passwords and disable remote management unless needed. Set up a VPN for remote access and adjust firewall settings to block unwanted traffic.

Tip: Always keep a backup of your settings before making changes.

Factory Reset

If you need to restore your router to its original state, follow these steps:

1. Find the reset button on your router.
2. Make sure the router is powered on.
3. Press and hold the reset button for 10-30 seconds until the lights change.
4. Release the button and wait for the router to reboot.
5. If the router does not respond, try the 30/30/30 reset method: hold the button for 30 seconds while powered on, unplug for 30 seconds while holding, then plug in and hold for another 30 seconds.
6. You can also reset through the web interface if you can access it.
7. For advanced recovery, use failsafe mode. Power on the router and press the reset button during boot. Connect with SSH and run firstboot, then reboot.

Note: Always back up your configuration before a reset. Use a wired connection for failsafe mode.

HUASIFEI Support

HUASIFEI gives you many resources to help with openwrt routers:

• You can find a dedicated support page and setup videos on their website.
• Detailed guides show you how to use lightweight databases like SQLite and Redis on your router.
• Tips help you expand storage with USB or SD cards.
• Security advice covers strong passwords, encryption, and regular updates.
• Step-by-step instructions make installing software easy.
• Real-world examples show how to manage IoT data and monitor your network.
• You can learn how to pair your router with tools like Grafana for live monitoring.

HUASIFEI’s support makes it easy to follow this guide and get the most from your router.

You can set up your OpenWrt modem router quickly, especially with HUASIFEI devices. Many users praise features like 5G WiFi6, VPN integration, and easy setup. You get a stable network that supports streaming, gaming, and many devices.

If you need help, visit forums like Level1Techs or Hak5. As you learn, you can unlock more network features and take charge of your home network.

FAQ

How do you update OpenWrt on your router?

You visit the System > Backup / Flash Firmware page in LuCI. You upload the new firmware file and follow the prompts. Always back up your settings before you start. Updates keep your router secure and add new features.

Can you install OpenWrt on any router?

No, you cannot install OpenWrt on every router. You must check the official OpenWrt Table of Hardware. This list shows which models support OpenWrt. Using an unsupported device may damage your router.

What should you do if you forget your OpenWrt password?

You can reset your router to factory settings. Hold the reset button for 10-30 seconds while the router is powered on. This action erases your custom settings and restores the default password.

Why does your WiFi signal seem weak after setup?

You may have placed your router in a corner or near metal objects. Move your router to a central, open spot. Change the WiFi channel in LuCI to avoid interference. Use the latest firmware for best performance.

How do you add new features to OpenWrt?

You use the LuCI web interface or SSH to install packages. Go to System > Software, search for the package you want, and click Install. For example, you can add Adblock, VPN, or mesh networking support.

Tip: Always check package compatibility with your router’s hardware before installing.
