IP65 Waterproof outdoor 5.8G Bridge 5KM Long Range 900Mbps Point to Point WiFi Bridge

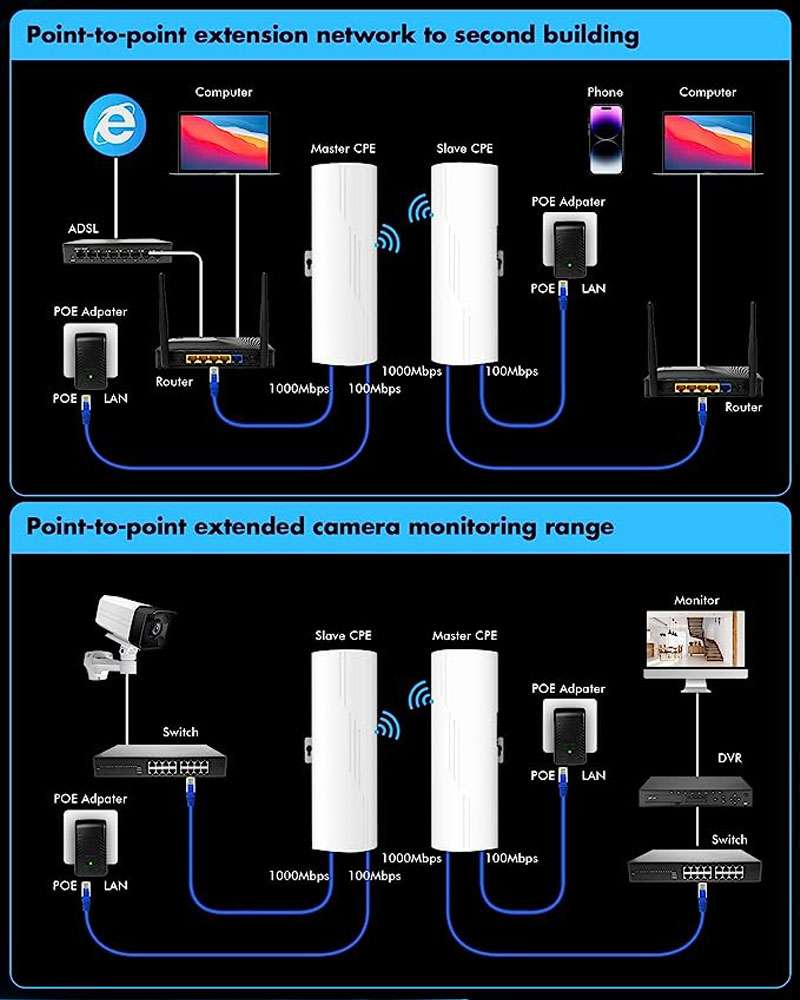

CPE902 is our new upgraded dual gigabit RJ45 port bridge, with a maximum wired speed of 900Mbps, which can meet long-distance wireless transmission within 5KM,and supports point-to-point, point-to-multipoint network expansion and monitoring expansion.

Product Features

Dual gigabit port bridge: CPE902 is our new upgraded dual gigabit RJ45 port bridge, with a maximum wired speed of 900Mbps, and supports point-to-point, point-to-multipoint network expansion and monitoring expansion.

5KM long-distance transmission: This outdoor point to point wireless bridge uses a 15dbi directional antenna, which can meet long-distance wireless transmission within 5KM. And the point to point internet bridge uses TVS protection devices to improve stability in bad weather, which is very suitable for outdoor use.

Qualcomm chip: Different from ordinary chips used in general wireless ethernet bridge, CPE902 uses Qualcomm chips, which have the characteristics of high bandwidth, high stability, long transmission distance and support for encryption, etc, and have excellent stability and practicability.

48V POE power supply: This ueevii wireless bridge adopts international standard 48V POE power supply, which is compatible with most devices. POE power supply is flexible, no wiring is required, and the equipment can be moved at will, which is very convenient to use. And the 48V power supply is only connected to the wifi bridge kit, avoiding the risk of leakage, safe and reliable.

Easy to use: You can press the bridge button to set master/slave to achieve pairing, no need to visit the web for complicated settings. This outdoor point to point wifi bridge can be used in barn, garage, farm, shop, warehouse, even your neighbor’s house, which is very simple for your life.

Product technical specifications

Product parameters
Hardware Configuration
Model	CPE-S900Q
Main Chip	MTK7620A+7621E+IP1001M 900Mbps High Performance Enterprise Chip
Main Frequency	580MHz MIPS® 24KEc™ Central Processing Unit
Wireless Technology	5G:900M 802.11a/n/ac MIMO technology
Memory	64MByte DDR2
Flash	8MB
Network Interface	WAN:110/100/1000 Mbps adaptive RJ45 network interface LAN: 110/100Mbps adaptive RJ45 network interface
Button	1 * digital switch / reset button, short press the digital tube display value plus one, long press 15 seconds to restore factory settings
Indicator Light	Signal SIG indicator, LAN1/LAN2 network interface status indicator, power indicator, digital tube indicator
Power source	24V 1A non-standard POE power supply. DC 12V 1A, power consumption﹤10W
Working Environment	Temperature: -30℃～+55℃（working）, -40℃～+70℃（storage） Humidity (non-condensing): 10%～90% (working), 5%～95% (storage)
Product Size	N/A
Product Weight	N/A
Antenna	Built-in dual polarization high gain 14dBi directional plate antenna (horizontal wave half-angle 60°, vertical wave half-angle 60°)

Software Features
Working Mode	Master AP, Slave AP (dialing code conversion)
Network mode	Point-to-point, point-to-multipoint (within 8 points)
Management mode	Chinese WEB remote management
Network	Bridge: Static IP/Dynamic Acquisition Gateway: Static IP/Dynamic Acquisition/PPPoE
Bridge Management	Free binding cloud account, real-time remote management of devices
Wireless Management	Bridge configuration/advanced configuration/WiFi settings
System	Time zone time configuration, login password modification, backup/restore, reboot/timed reboot
System Update	WEB browser-based local update, online update

Software Features
Working Mode	Master AP, Slave AP (dialing code conversion)
Network mode	Point-to-point, point-to-multipoint (within 8 points)
Management mode	Chinese WEB remote management
Network	Bridge: Static IP/Dynamic Acquisition Gateway: Static IP/Dynamic Acquisition/PPPoE
Bridge Management	Free binding cloud account, real-time remote management of devices
Wireless Management	Bridge configuration/advanced configuration/WiFi settings
System	Time zone time configuration, login password modification, backup/restore, reboot/timed reboot
System Update	WEB browser-based local update, online update

Packaging & Shipping

FAQ

OEM/ODM service is accepted? Can I get my products customized?

OEM/ODM service is available.

What kind of service do you offer

1.Custom solutions for WIFI system 2.Replacement and enhancement of connectors, antennas, modules, and GPS systems 3.Custom logo design 4.Label creation and application 5.And more

When I can get the price?

Our sales team usually quote within 8 hours after we get your inquiry with full detail. Any urgent cases, please contact us directly by phone or send eamil to our official email.

Will I be able to see a prototype before placing my order?

Yes, Before any order proceeds into production,we require that you see and approve of it.

How long is the production lead time?

Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

How to update the firmware of our router to the latest version?

If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
