HUASIFEI black Iron shell 4g router openwrt 12V DC 300Mbps wifi 4g router with SIM slot
1、Industrial grade design, equipped with PCIE 4G modules;

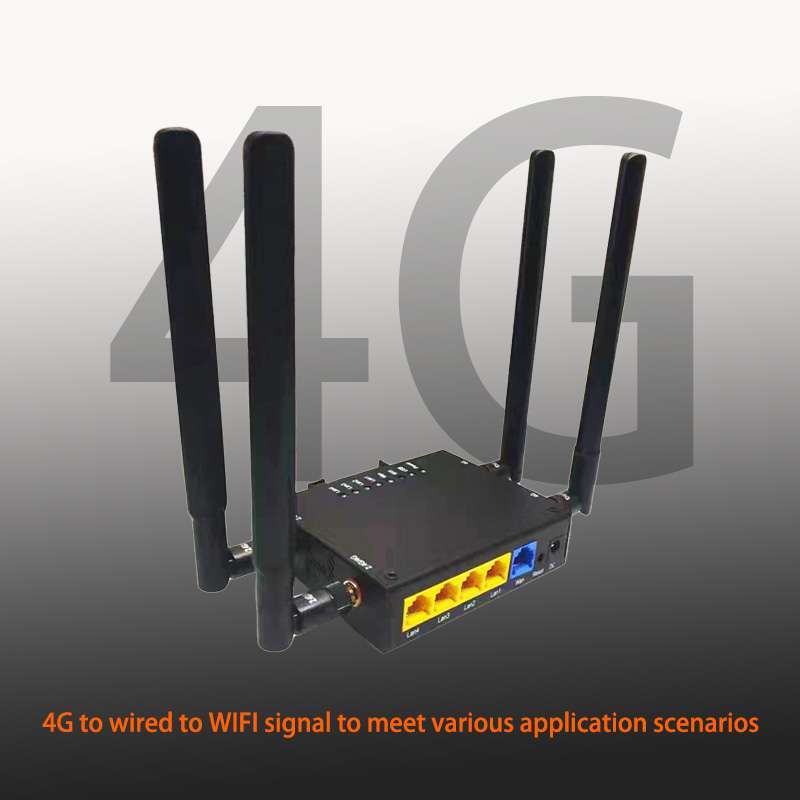

2、4G to wired to WIFI signal conversion, meeting various application scenarios;
3、With a large number of devices, it is easy to connect to various wireless terminal devices;
4、No wiring, bid farewell to wired broadband, flexible installation;
5、Free card replacement, plug and play, with network access for card insertion;

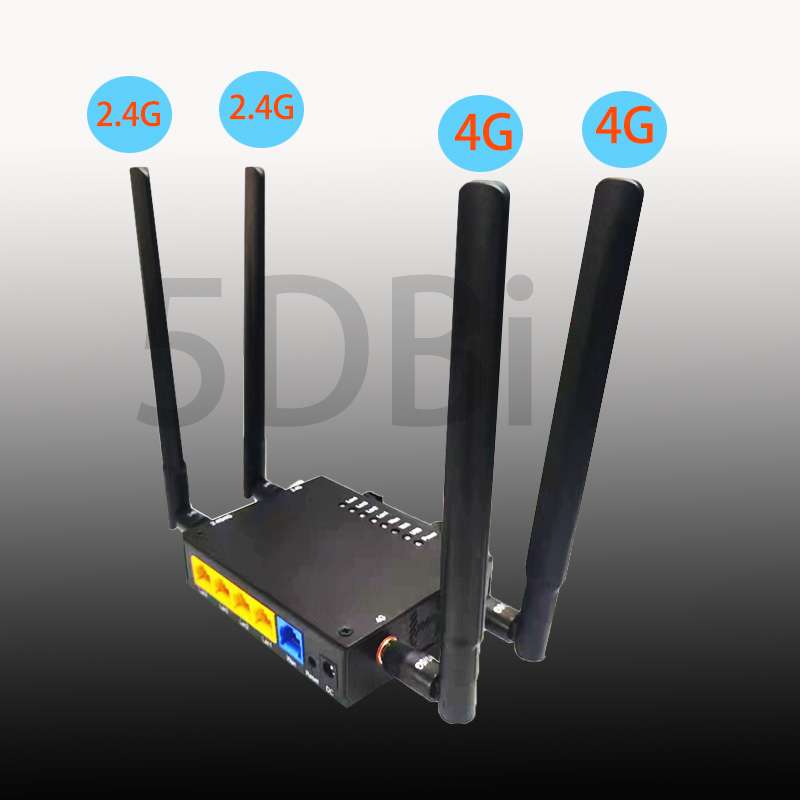

6、Two 2.4G and two 4G high gain omnidirectional antennas are installed externally, with strong penetration and stable signal.
Product features
| Hardware specifications | ||
|---|---|---|
| hardware system |

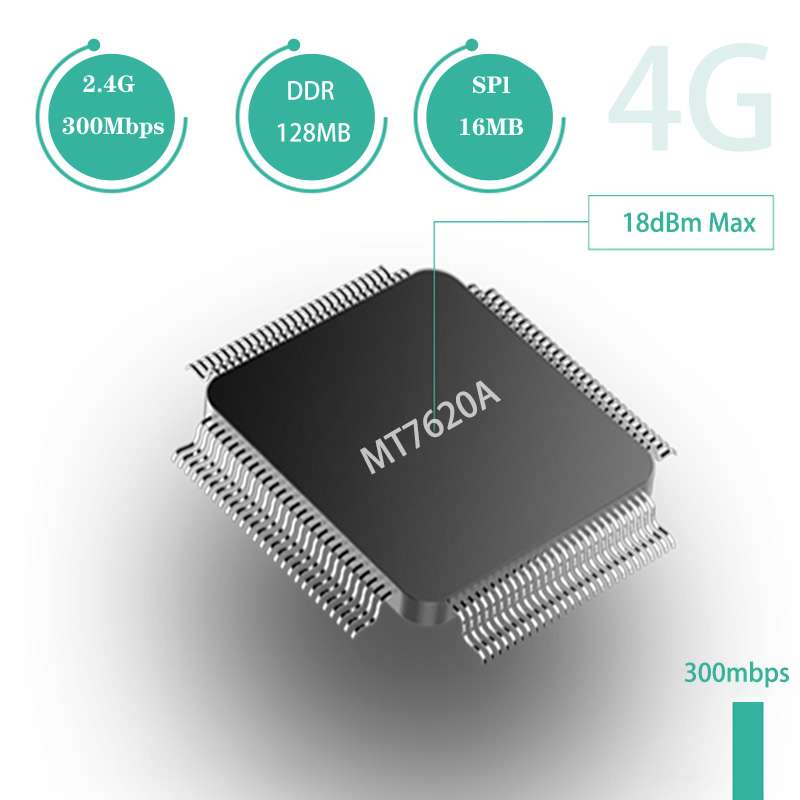

master control | MT7620A |
| FLASH | 16MB | |
| DDR | 128MB | |
| 4G module | EC200A/EC20/EC25/EP06 | |
| Wireless parameters | Protocol standards | IEEE 802.11 b/ g/ n |
| Working frequency band | 2.4GHz:2412MHz~2472MHz | |
| Wireless rate | 300Mbps Max | |
| 4G rate | LTE-FDD:Maximum downlink speed 150Mbps, maximum uplink speed 50Mbps LTE-TDD:Maximum downlink speed 130Mbps, maximum uplink speed 30Mbps |
|
| Transmission power | 18dBm Max | |

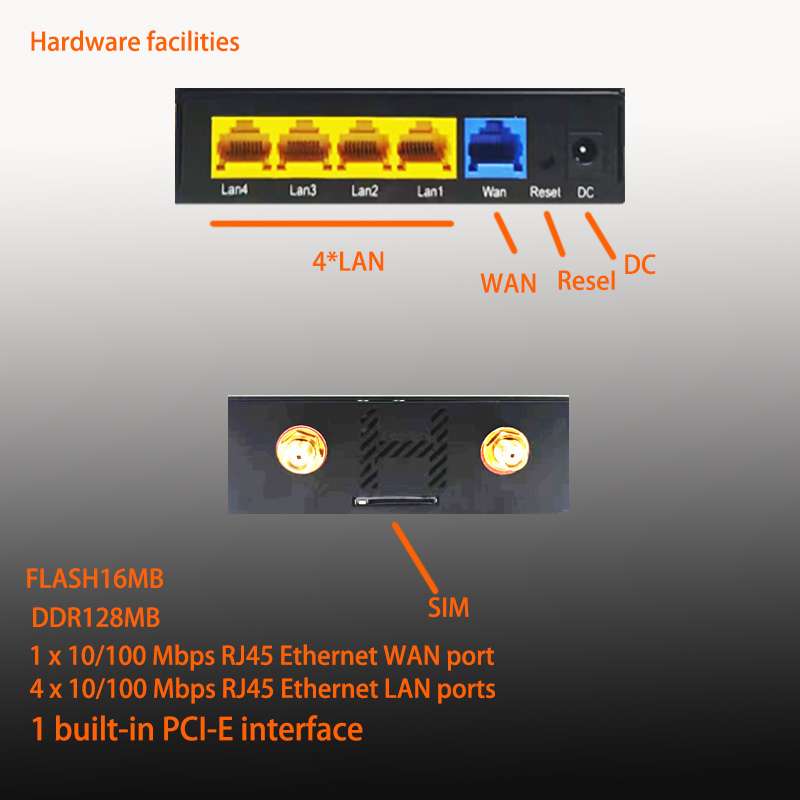

| physical interface | network interface | 1 10/100 Mbps RJ45 Ethernet WAN port 4 10/100 Mbps RJ45 Ethernet LAN ports |
| Power supply interface | 1 DC power port, supporting 12V DC power supply |
|
| SIM card interface | 1 standard pop-up Mini SIM card slot | |
| Key switch | 1 RESET reset button | |
| PCI-E interface | 1 built-in PCI-E interface (optional or replaceable 4G modules of different brands) | |
| Antenna interface | 2 standard SMA interfaces for 4G antennas (external interface, interchangeable with different antennas) 2 WIFI antenna standard SMA interfaces (external interface, can replace different antennas) |
|
| pilot lamp | LED indicator light | Respectively POWER,4G,WIFI,WAN,LAN1,LAN2,LAN3, LAN4 |
| Power supply/power consumption | Power supply method | DC 12V~1A power supply |
| product accessories | main engine | Industrial grade intelligent 4G router host * 1 |
| DC adapter | DC 12V/1A | |
| antenna | Two 5dBi high gain omnidirectional WIFI antennas Two 5dBi high gain omnidirectional 4G antennas |
|
| other | User manual * 1, warranty card * 1, certificate of conformity * 1 | |

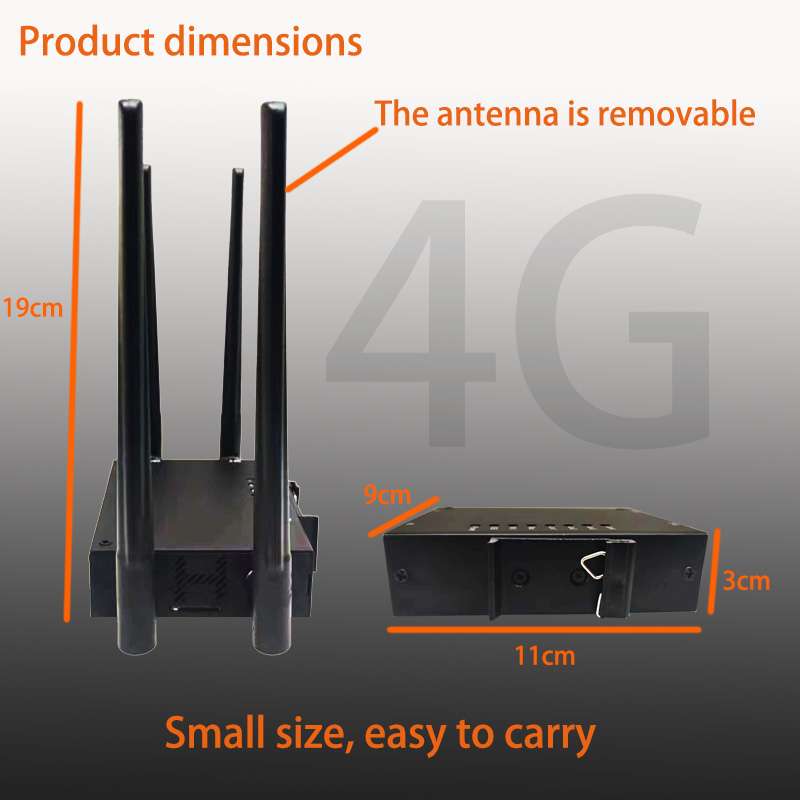

| Appearance/Packaging | Product size | External dimensions (length * width * height): 110mm * 90mm * 30mm (excluding antenna) Antenna height: 190mm |
| Appearance material | Iron shell, frosted surface | |
| Appearance color | Black (customizable appearance color) | |
| weight | 1.5kg | |
| other | Protection level | IP31,2KV lightning protection |
| Installation method | Desktop and wall mounted | |
| Usage environment | Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10%~90% RH non condensing Storage humidity: 5%~95% RH non condensing |
|
Packaging & Shipping
FAQ
OEM/ODM service is accepted? Can I get my products customized?
OEM/ODM service is available.
What kind of service do you offer
1.Custom solutions for WIFI system
2.Replacement and enhancement of connectors, antennas, modules, and GPS systems
3.Custom logo design
4.Label creation and application
5.And more
When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.
Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.
How long is the production lead time?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.
How to update the firmware of our router to the latest version?
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
