HUASIFEI 1200Mbps dual band lte router 4G 5G lte wireless router
Hardware.
WS1208V2 uses the latest MMT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 2.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card.
Wireless
Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 6×5Dbi high gain antennas for better performance and coverage
Software

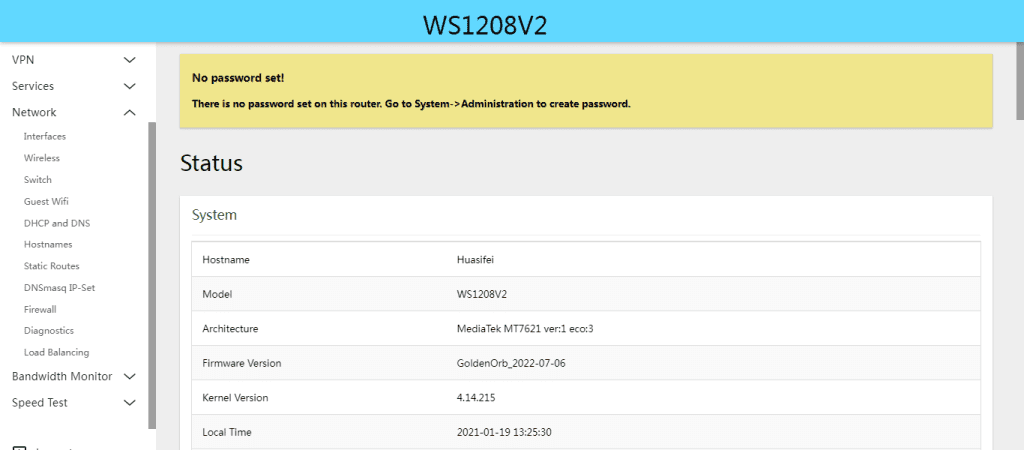

OpenWRT pre-installed.
Firmware support rooter.
Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q
Fibocom L850 L860 FM150 module, etc.
Modem band lock support
Product Features
| WS1208V2 Hardware Specifications | |
|---|---|
| Hardware Specifications | MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB |
| Protocol Standards | IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u |
| Wireless Rate | Dual-band concurrent up to 1200Mbps |
| Operating band | 2.4GHz 5.8GHz |
| 4G 5G Modem | |
| Output Power | 11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm |
| Receiving sensitivity | 11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm |
| Antenna | 2 x 5dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas |
| Interface | 1*10/100M/1000M WAN port with automatic MDI/MDIX 4*10/100M/1000M LAN ports, auto MDI/MDIX 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card |
| LED | power/2.4G/5.8G/WAN/LAN1/LNA2/LNA3/LNA4 |
| Button | 1 Reset button |
| Power adapter | DC 12/1000mA |
| Maximum power consumption | < 24W |
| Color scheme | Black |
| Accessories and Packaging | Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/2A *1PCS Super Category 5 network cable *1PCS |
Details Images
Packaging & Shipping
FAQ
OEM/ODM service is accepted? Can I get my products customized?
OEM/ODM service is available.
What kind of service do you offer
1.Custom solutions for WIFI system
2.Replacement and enhancement of connectors, antennas, modules, and GPS systems
3.Custom logo design
4.Label creation and application
5.And more
When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.
Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.
How long is the production lead time?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.
How to update the firmware of our router to the latest version?
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
