High quality 1200Mbps dual band Ceiling AP gigabit WAN/LAN port Indoor Wireless AP

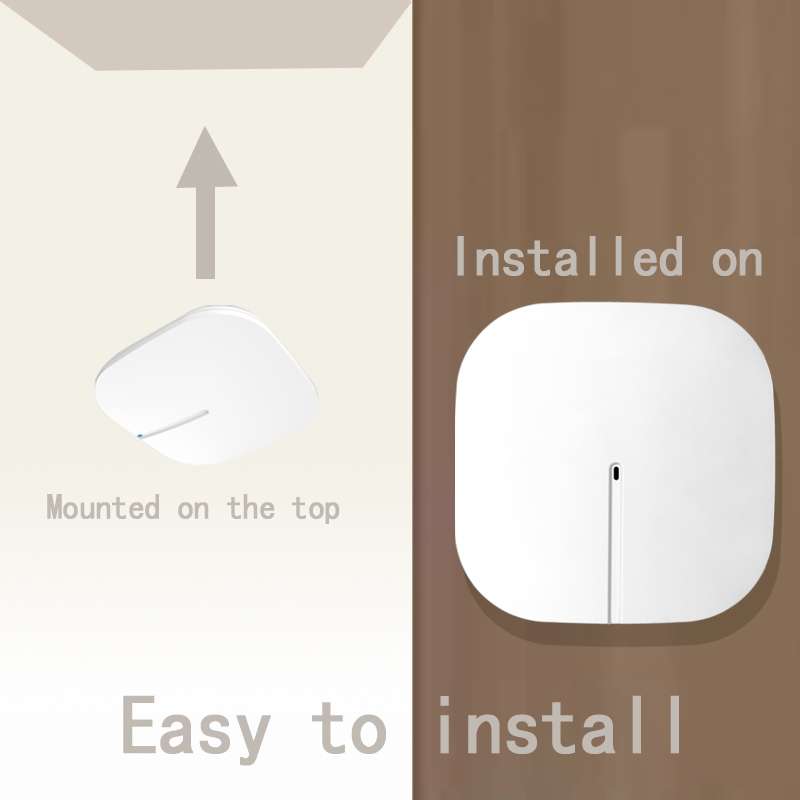

XD1200K-M is a dual-band ceiling-mounted wireless access point that uses the 802.11a/b/g/n/ac wave2 wireless network standards. It operates in the 2.4GHz and 5GHz ISM wireless frequency bands, and can support up to 128 concurrent wireless connections for high-speed internet access. With a Gigabit Ethernet interface, it supports remote PoE (Power over Ethernet) power supply according to the 802.3af/at standards. In the 2.4GHz 802.11n mode, it can provide a maximum speed of 300Mbps, while in the 5GHz 802.11ac mode, it can provide a maximum speed of 867Mbps, resulting in a total wireless throughput of up to 1200Mbps. It features high power, high gain, high receive sensitivity, low latency, and high density, enabling it to cover larger areas and provide superior wireless transmission performance and stability. Its ceiling-mounted design, integrated Ethernet interface, and sleek appearance make it easy to deploy, and it can be seamlessly integrated into the ceiling or wall without disrupting the overall interior design layout. It is an ideal choice for wireless access in large-scale, low-density, high-bandwidth environments such as hotels, supermarkets, offices, KTVs, and restaurants.

Product Features

Utilizing cost-effective wireless chips from MediaTek and adhering to industrial standard circuit design. Equipped with an enhanced heat sink and optimized air duct design, eliminating the risk of overheating during scorching summer days. Ensures real-time, long-term, stable, and efficient transmission of user network data, enhancing user experience.

Supports 802.11a/b/g/n/ac wave2 protocols, providing wireless access speeds of 2.4G 300Mbps and 5G 867Mbps. The overall device offers a wireless access speed of up to 1200Mbps.

Equipped with an external professional independent WiFi RF amplifier chip, ensuring wider signal coverage, higher rates, and longer transmission distances.

Paired with integrated software for both small and large-scale scenarios. Can be used individually for small venues or combined with gateway devices for batch deployment in medium to large-scale scenarios, meeting the requirements of various complex network environments.

Supports remote management via cloud platforms and WeChat mini-programs. Enables real-time remote viewing, configuration, upgrades, and maintenance.

Continuous product updates, feature enhancements, and performance optimizations to adapt to various network environments and improve user experience.

Hardware configuration
Main Chip	MTK7621A+MTK7613B+MTK7603
Frequency	MIPS dual-core 880MHz
Memory	128MB
Flash	16MB
Wireless Technology	– 2.4G WiFi: 2×2 802.11b/g/n (Theoretical maximum speed up to 300Mbps) – 5.8G WiFi: 2×2 (2-stream) MU-MIMO 802.11a/n/ac Wave2 (Theoretical maximum speed up to 867Mbps) – TxBF (Transmit Beamforming): Beamforming technology that concentrates the wireless signal in specific directions, enhancing the transmission and reception performance of the signal.

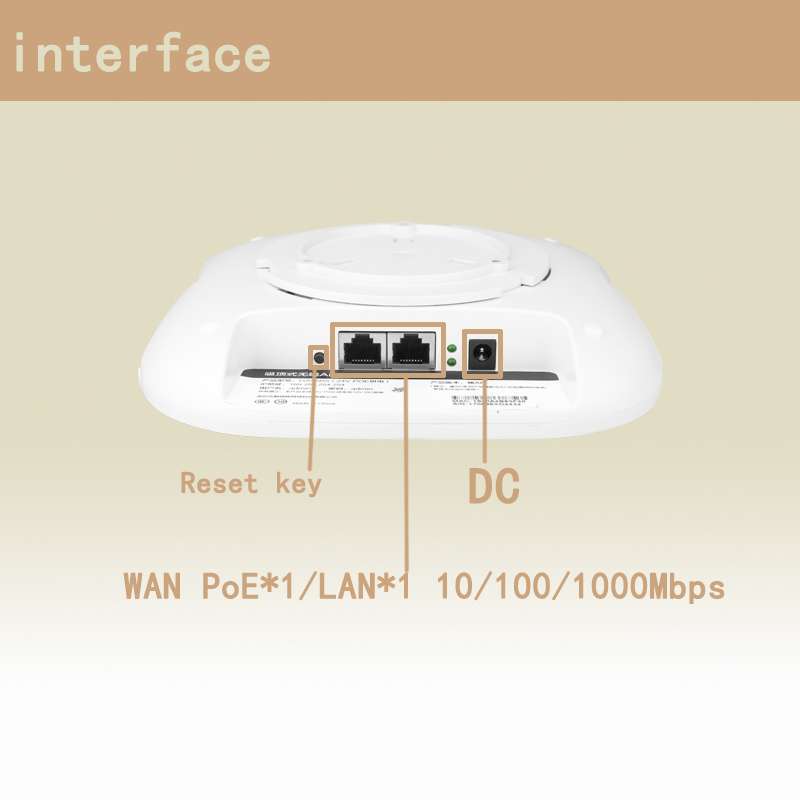

Device Interfaces	WAN PoE1/LAN1 10/100/1000Mbps adaptive DC direct power supply interface, suitable for connecting power plugs with an outer diameter of 5.5mm, inner diameter of 2.1mm, and length of 9.5mm or above.
Buttons	Reset button for factory reset (long press for 6 seconds to reset)
Indicators	Status indicators
Antennas	Built-in 2.4G 2dBi FPC antenna * 2 Built-in 5.8G 2dBi FPC antenna * 2
Power	48V 802.3af/at PoE, DC 12V/1A
Operating/Storage Temperature	-10℃~45℃/ -20℃~70℃
Operating/Storage Humidity	10%~90%(non-condensing) / 5%~90%(non-condensing)

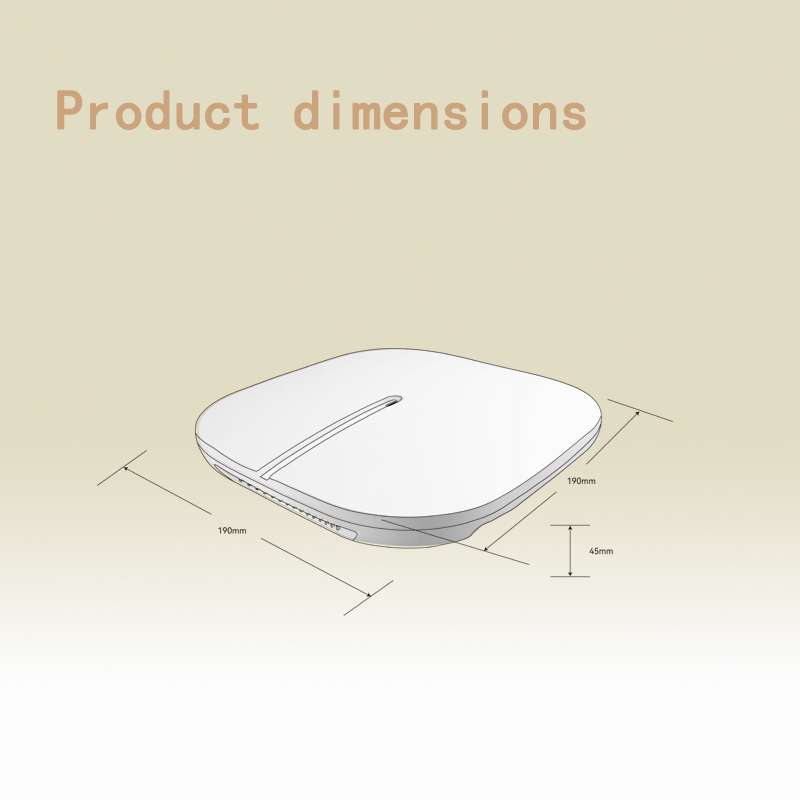

Dimensions	19019045mm

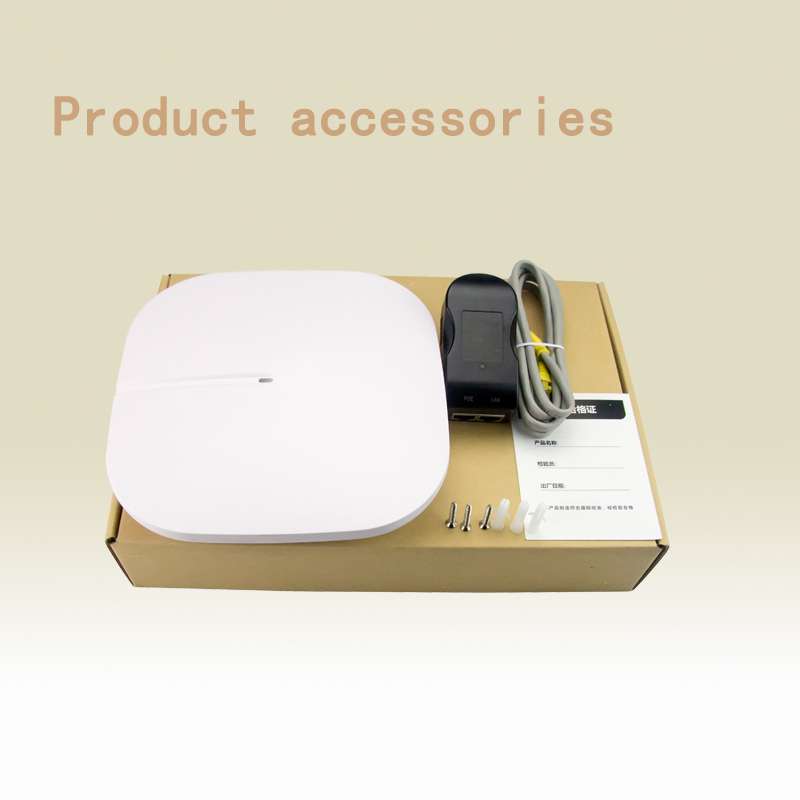

Packaging & Shipping

FAQ

OEM/ODM service is accepted? Can I get my products customized?

OEM/ODM service is available.

What kind of service do you offer

1.Custom solutions for WIFI system 2.Replacement and enhancement of connectors, antennas, modules, and GPS systems 3.Custom logo design 4.Label creation and application 5.And more

When I can get the price?

Our sales team usually quote within 8 hours after we get your inquiry with full detail. Any urgent cases, please contact us directly by phone or send eamil to our official email.

Will I be able to see a prototype before placing my order?

Yes, Before any order proceeds into production,we require that you see and approve of it.

How long is the production lead time?

Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.

How to update the firmware of our router to the latest version?

If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
