High-Performance Industrial-Grade WiFi router board

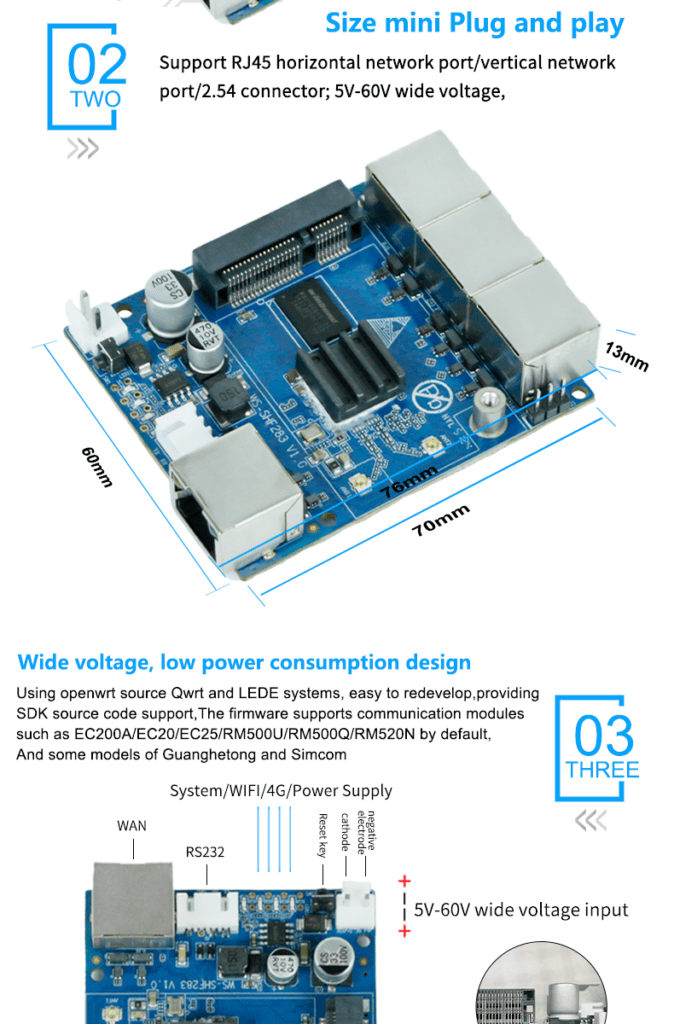

Our WiFi router board featuring both RJ45 vertical and horizontal ports for flexible connectivity.

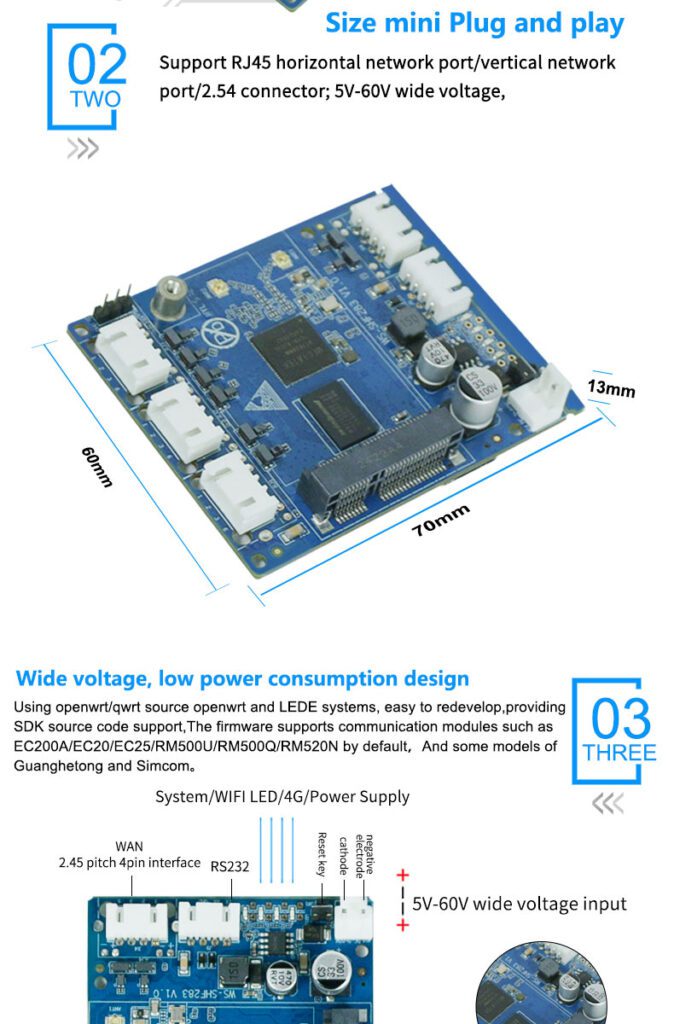

Compact size，plug and play
Designed for wide voltage support from 5V to 60V, this module is ideal for various IoT and networking applications.
Compatible Modules: Supports EC25, RM500U, RM500Q, RM520N modules and some other modules from Fibocom and simcom
Multiple Interfaces for Versatile Connectivity
Connectivity: 1 WAN port &3 LAN ports, 1 SIM card slot, and 1 miniPCIe interface
Wide Voltage Range&Low Power Consumption
Power Versatility: Wide voltage range (5-60V) for diverse applications
Development Ready: Equipped with Qwrt+LEDE system and an available SDK for custom development
Easy Integration: 3.96mm pitch and 2.54mm connectors for seamless connection
Technical specifications
SHF283∣Hardware Specifications | |
Hardware Specifications | High performance MT7628N chip Memory 128MB Flash 16MB |
Protocol Standards | IEEE802.11n/g/b/a IEEE802.3/802.3u |
Wireless Rate | 300Mbps |
Operating Frequency Bands | 2.4GHz |
output power | 11n：17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm |
receiver sensitivity | 11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm |
antennae | 2* external Wi-Fi antennas |
interfaces | 3*10/100Mbps LAN Ports, Auto MDI/MDIX. 1*10/100Mbps WAN port, auto MDI/MDIX. 1*minipcie interface, support 4G module 1*2 Pin 3.96mm Power Connector 1*Nano sim 1*RS232 4PIN 2.54 pitch |
LED Lights | Power/System/WIFI/4G |
Pushbuttons | Reset Button |
Power Adapter | 1*2 Pin 3.96mm power connector (5V-60V) |
Maximum Power Consumption | < 8W |
