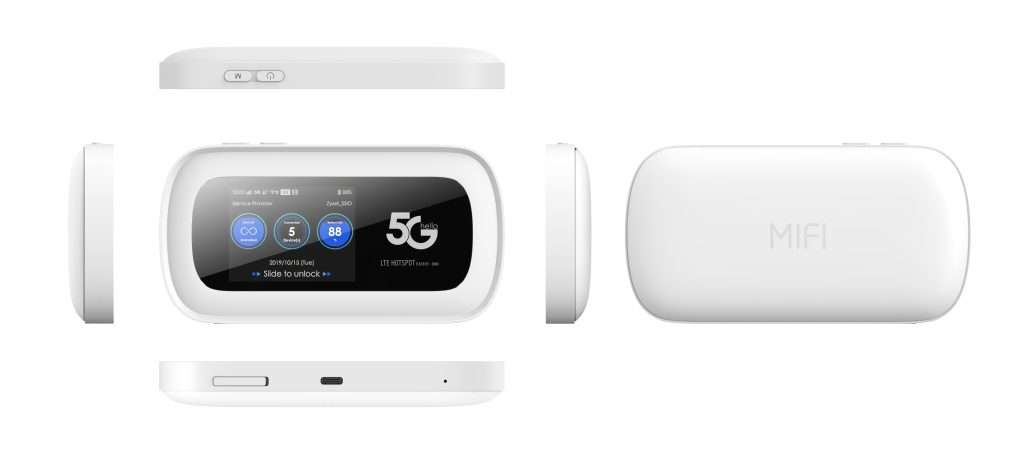

1200Mbps dual band mini wifi router 5g chip MTK 900+MT6877 router sim 5g with Polymer battery 4400mAh
The 1200Mbps dual-band mini WiFi router is suitable for scenarios requiring high-speed wireless internet access, such as small offices, homes, or outdoor settings where reliable and fast wireless connectivity is essential.
Product Features
| 5G MIFI Specifications | ||
|---|---|---|
| General Information | ||
| Product | 5G MIFI | |
| Model | M2H77 series | |
| Target Market | M2H-77-EAU for China, EMEA, Asia Operators & Open marketM2H-77-LAM for Mexico,Latin America Operators & Open marketM2H-77-NA for North America Operators & Open market | |
| Highlights | MTK 5G 6nm MT6877, stable network performance,WiFi6, low power comsuption. | |
| Certificates | CE/FCC ability | |
| Specification | ||
| OS Version | Andriol 11 or above | |
| Platform | Chipset | MTK 900,MT6877,6nm2*A78(2.4GHz)+6*A55(2.0GHz),GPU:Mali OTR MC4 |
| Memory | LPDDR4X 2GB RAM+EMMC 8GB ROM or above | |
| WiFi | MT6635 | |
| BT | Bluetooth 5.1,Optional | |
| LCM | LCD | 2.4”TFT MIPI(LCD or LED) |
| TP | Support (Option) | |
| LED | LED | Power,WiFi,5G,4G(Option,need to be customized) |
| Cellular | Protocal | 3GPP Rel.15,5G NR,SA/NSA,Sub 6G/LTE Category 18 |
| EAU bands | 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 4G:B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B433G:B1/B5/B8 |
|
| LAM bands(TBD) | 5G:n2/n5/n28/n66/n784G:B2/B4/B5/B7/B8/B28/B42/B43/B663G:B2/B5/B8 | |
| NA bands(TBD) | 5G:n2/n5/n12/n25/n66/n41/n48/n71/n77/n78 4G:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42/B43/B48/B66/B71 |
|
| CA/ENDC | Support mainstream 2CC LTE+1CC NR ENDC combination, as well as LTE 2CA and partial 2CA NR. | |
| Throughput | NSA NR:Downlink/Uplink up to 3.5Gbps/700Mbps SA NR:Downlink/Uplink up to 2.77Gbps/1.25Gbps LTE:Downlink/Uplink up to 1.2Gbps/150Mbps WCDMA:Downlink/Uplink up to 42.2Mbps/11.5Mbps |
|
| Antenna | 4*4 MIMO | |
| WiFi | Bands | 2.4G or 5.8G dual band |
| Protocal | 802.11 a/b/g/n/ac/ax | |
| Throughput | 802.11a: Up to 54Mbps 802.11b:Up to 11Mbps 802.11g:Up to 54Mbps 802.11n:Up to 300Mbps 802.11ac:Up to 866Mbps 802.11ax:Up to 1201Mbps |
|
| Antenna | 2*2 | |
| Users | 16 users | |
| Interface | SIM card | NANO SIM card,eSIM optional,hot plugging supported |
| USB | TYPE-C(USB3.0) | |
| Button | Button | 1*Power,1*MENU |
| Charge | TYPE-C | 5V/2A,5V/3A,9V/2A |
| Battery | Polymer battery | 4400 mAh |
| Size | Size | 125x70x17 mm |
| Enviroment | Working Temperature | 0℃-45℃ |
| Storagy Temperature | -20℃-70℃ | |
| Humidity | 5%-95% | |
| [TBD]This SKU could be supported, but it needs extra debugging. | ||
Packaging & Shipping
FAQ
OEM/ODM service is accepted? Can I get my products customized?
OEM/ODM service is available.
What kind of service do you offer
1.Custom solutions for WIFI system
2.Replacement and enhancement of connectors, antennas, modules, and GPS systems
3.Custom logo design
4.Label creation and application
5.And more
When I can get the price?
Our sales team usually quote within 8 hours after we get your inquiry with full detail.
Any urgent cases, please contact us directly by phone or send eamil to our official email.
Will I be able to see a prototype before placing my order?
Yes, Before any order proceeds into production,we require that you see and approve of it.
How long is the production lead time?
Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.
How to update the firmware of our router to the latest version?
If you want to learn more about these services,give us a call, we will be more than happy to guide you through the process.
